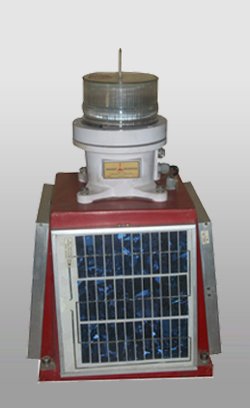

Ne- 4 Compact LED Lantern
NE 4 is self contained 4 NM Solar LED Marine lantern with 140 mm Lens for long term use, cost effective, maintenance free service, can be easily installed. LM -6 is used for lantern body. The NE 4 is mounted on FRP ( Non corrosive ) stand with 4 Solar Panels as shown in diagram.
SALIENT FEATURES
Long Life
Storng & Robust
Compact
No Maintenance
Shock & Vibration Resistance
Reverse Polarity Protection
Specifications
SALIENT FEATURES
Long Life
Storng & Robust
Compact
No Maintenance
Shock & Vibration Resistance
Reverse Polarity Protection
Specifications
| Light Source | 36 LEDs |
| Colors | Red, Green & White |
| Range | 4 NM |
| Flashing Characteristics | 256 IALA recommended Characters |
| LED Life Upto | Upto 100000 Hours |
| Autonomy | More than 20 days |
| Battery Type | 12V 26AH SMF |
| Vertical Divergence | 9 degree |
| Horizontal Divergence | 360 degree |
| Solar Pannel | 4 Nos x 5 Watt each |
| On – Off Switch | Provided |
| Dimensions | 470mm x 470mm x 600mm |
| Weight | 20 Kg |
| Mounting | 4 x 200mm PCD with M 12 |
| Top Mark | On Request |
