Solar Lighting Systems

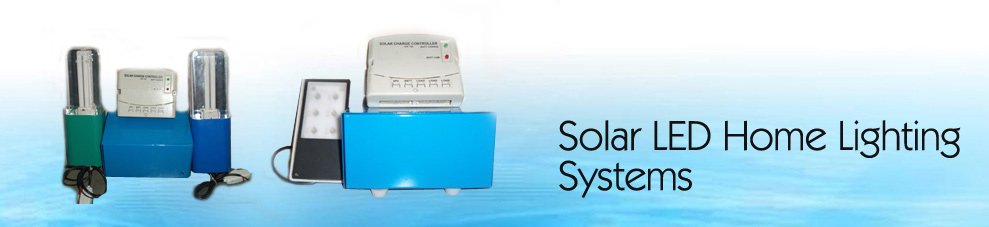

Solar LED Home Lighting Systems
The Solar LED Home Lighting System is deigned to provide uninterrupted light by the use of Solar Energy in remote areas where power supply is not available during night time. It aims to provide light by means of 2 Power LED Luminary. The system provides 3 days of autonomy. Even additional feature such as Fan (D.C), Television (D.C.) can also be run by this system.
Duration of Work
Model-03 - 5-6 hours daily
Model-06 - 5-6 hours daily
Model-08 - 5-6 hours daily
General Electrical Specifications
Max Charging current- 6A
Max. Load current- 6A
Load disconnect battery voltage- 11 ± 0.2 volts or as required
Load reconnect battery voltage- 12.5 ± volts or as required
Constant Charging Voltage- 14.5 ± 0.2 volts or as required
Idle current consumption- Less than 10ma
Light Output- 600 lumens (each 9W CFL) and 900 lumens (each 11W CFL)
Duration of Work
Model-03 - 5-6 hours daily
Model-06 - 5-6 hours daily
Model-08 - 5-6 hours daily
General Electrical Specifications
Max Charging current- 6A
Max. Load current- 6A
Load disconnect battery voltage- 11 ± 0.2 volts or as required
Load reconnect battery voltage- 12.5 ± volts or as required
Constant Charging Voltage- 14.5 ± 0.2 volts or as required
Idle current consumption- Less than 10ma
Light Output- 600 lumens (each 9W CFL) and 900 lumens (each 11W CFL)
| General Technical Specifications | |||||
| Model | Luminary & Fan (D.C) |
Battery | Solar Panel | Charge Controller | Accessories |
| NESHL- 0307 | 3W/12V- 1Nos. | 7.2Ah/12V- 1No. | 10W/12V-1No. | 6A-1No. | Solar module mounting frame, battery box, wire- 14mtr etc. |
| NESHL- 0318 | 3W/12V- 2Nos. | 18Ah/12V- 1No. | 20W/ 12V-1No. |
6A-1No. | Solar module mounting frame, battery box, wire- 14mtr etc. |
| NESHL- 0626 | 6W/12V- 2Nos. | 26Ah/12V- 1No. | 30W/12V-1No. | 6A-1No. | Solar module mounting frame, battery box, wire- 14mtr etc. |
