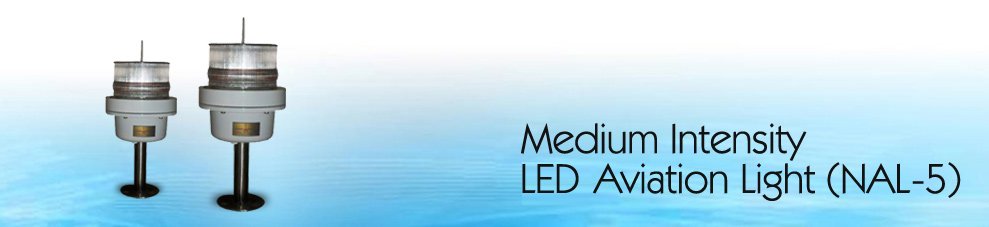

Medium Intensity LED Aviation Light (NAL-5)
Navaid Energy's NAL-5 is medium intensity obstruction light with a range of 10-12NM with 144mm Polycarbonate lens for long term use, cost effective, zero maintenance and easy to installed with 256 flashing characters. NAL-5 can be used as obstruction light on High Rise Buildings, Towers, Telecom towers, Chimneys etc.

Salient Features
Long Life
Strong & Robust
No Maintenance
Shock & Vibration Resistance
UV Stabalised Polycarbonate Lens

Technical Specifications
  • Model- NAL-5
  • Make- Navaid Energy Private Limited
  • Type- LED Aviation Obstruction Light
  • No. of LED- 36Nos High Brightness LED
  • Lens Type/Dome- UV Stabilized Polycarbonate Lens
  • Voltage Input- 100V-270V AC/50Hz
  • Light Mode- Flashing (Above 40Mtr)
  • Color- RED/White/Blue
  • Sun Switch- In-Built
  • Operation- Automatic Dusk to Dawn
  • Built in SMPS
  • Conforming to ICAO/FAA Standards
  • Light Body- Aluminum Cast Body
  • Mode available- Stationary/ Flashing
  • Power-35W
