LED FLOOD LIGHT

  • Having Wide range of wattage selection 50W to 400W in NavAid Flood Light housing

  • Lumen package ranges from 4,700 to 30,000+ with efficacies of 80-120 lumens per watt

  • Effectively replaces retro fitted lighting products from 150-1200W minimum

  • 6000K Cool white is standard, 4000K Warm white is available

  • Minimum 80 CRI

  • Fixtures are IP66 rated and suitable for use in ambient from -40°C to 40°C

  • Rated system life of 80 - 100K hours for the driver

  • Secondary Optics of 30/60/90/120 degree available as per Lux Requirement

LED FLOOD LIGHTS

Model Name Wattage View Angle LED Type Lumens (Max) Dimension (mm) Weight (Approx) Warranty

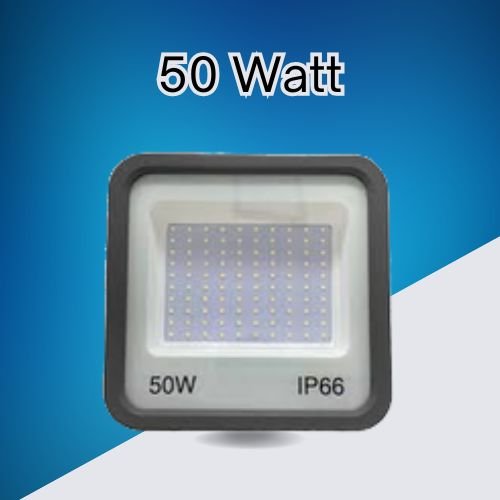

LNEFL-50W 50 30/60/90/120 5W LED 8500 230x220x110 2.1kg 2 years

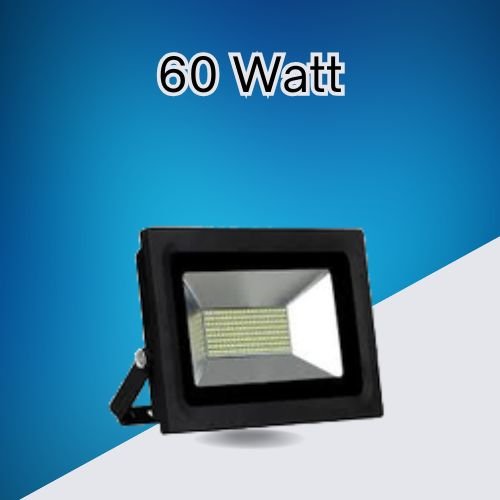

LNEFL-60W 60 30/60/90/120 5W LED 14400 335x250x130 3.5kg 2 years
LNEFL-70W 70 30/60/90/120 5W LED 18000 385x300x135 4.9kg 2 years
LNEFL-80W 80 30/60/90/120 5W LED 24000 385x300x135 5.1kg 2 years

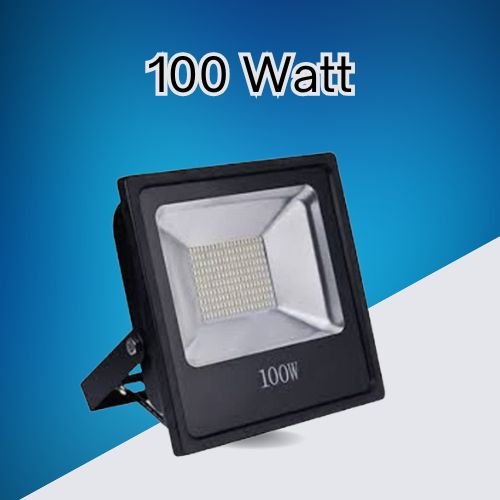

LNEFL-100W 100 30/60/90/120 5W LED 36000 485x350x135 8.1kg 2 years
LNEFL-110W 110 30/60/90/120 5W LED 48000 600x400x145 13.0kg 2 years
LNEFL-120W 120 30/60/90/120 5W LED - - - 2 years
LNEFL-125W 125 30/60/90/120 5W LED - - - 2 years

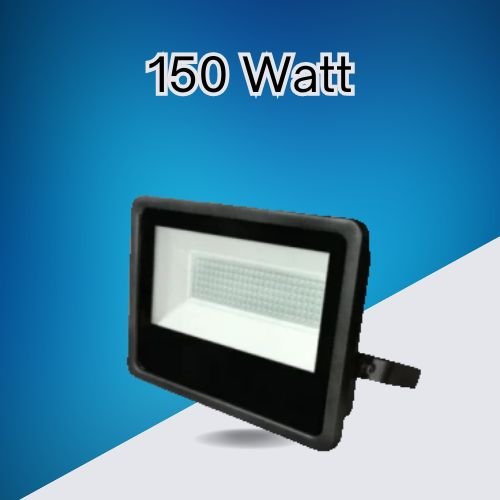

LNEFL-150W 150 30/60/90/120 5W LED - - - 2 years
LNEFL-180W 180 30/60/90/120 5W LED - - - 2 years

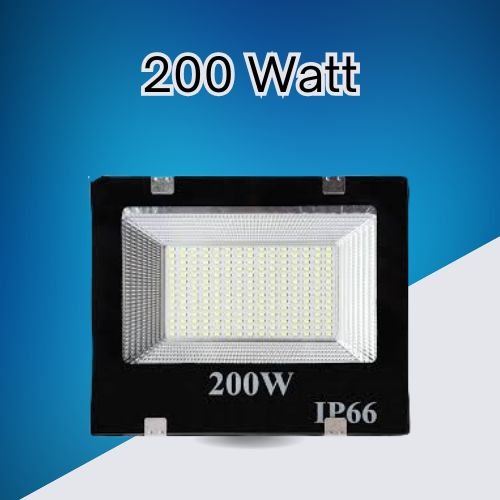

LNEFL-200W 200 30/60/90/120 5W LED - - - 2 years
LNEFL-225W 225 30/60/90/120 5W LED - - - 2 years
LNEFL-240W 240 30/60/90/120 5W LED - - - 2 years
LNEFL-250W 250 30/60/90/120 5W LED - - - 2 years
LNEFL-300W 300 30/60/90/120 5W LED - - - 2 years
LNEFL-350W 350 30/60/90/120 5W LED - - - 2 years
LNEFL-400W 400 30/60/90/120 5W LED - - - 2 years
LNEFL-450W 450 30/60/90/120 5W LED - - - 2 years
LNEFL-500W 500 30/60/90/120 5W LED - - - 2 years




General Electrical Parameter

  • Efficiency- >85%
  • Power factor >0.9
  • Voltage Range- 90-300VAC
  • Surge Protection- 4KV-6KV Inbuilt
  • Open circuit Protection
  • 3year Standard Warranty

General Mechanical Parameter

  • Aluminum Die cast body
  • Toughened Glass front cover
  • Cable Gland for wire entry
  • Silicone based gasket for longer life
  • Inbuilt Reflector
  • Modular LENS Make- LEDIL

Test Certificates-

  • LM-79 Tested
  • IP66 Standard
  • ISO9001:2008 Quality Test
  • CE-13035
  • IEC 61000-4-2 (Electrostatic Discharge Immunity)
  • IEC 61000-4-3 (Radio Frequency. Electromagnetic Filed Immunity)
  • IEC 61000-4-5 (Surge immunity)
  • IEC 61000-4-6 (Electromagnetic Compatibility Immunity EMC)
