GSM-GPS REMOTE MONITORING SYSTEM FOR MARINE LANTERNS (MODEL-NERMS-V1)

Navaid Energy’s GSM-GPS remote monitoring system (NERMS-V1) comes with Marine LED Lantern for Receiving and Sending monitoring and control signals through Mobile phone via SMS or by web based interface. NERMS-V1 comes integrated with our Marine Lantern or can be choose as optional as well. NERMS-V1 sends and receives messages via GSM to maximum of 10 authorized designated Users and these users can be mobile phone or base stations. NERMS-V1 also sends live updates of the Marine Lanterns via GPS to based internet mapping system.

REMOTE MONITORING AND CONTROL FEATURES
Alarm and Alerts-

  • Marine Lantern/Beacon Load failure
  • Solar Module failure
  • Battery failure
  • Photocell failure
  • Flash failure error
  • Low Battery Voltage alert
  • Load Consumption error
  • Solar Power ok Alert
  • Photocell working alert
  • Battery health
  • LED array working alert
  • Test Mode for checking light working in day time as well
  • Buoy mooring- chain breakage alarm by GPS Geo-fencing
  • Flash Selection confirmation alert
  • Remote programming via GSM or GPS
  • Flash Synchronization via SMS or Web portal
  • LED Intensity Increase via SMS or Web Portal
  • Real-time data reflection on website
  • Alarm acknowledgement by users

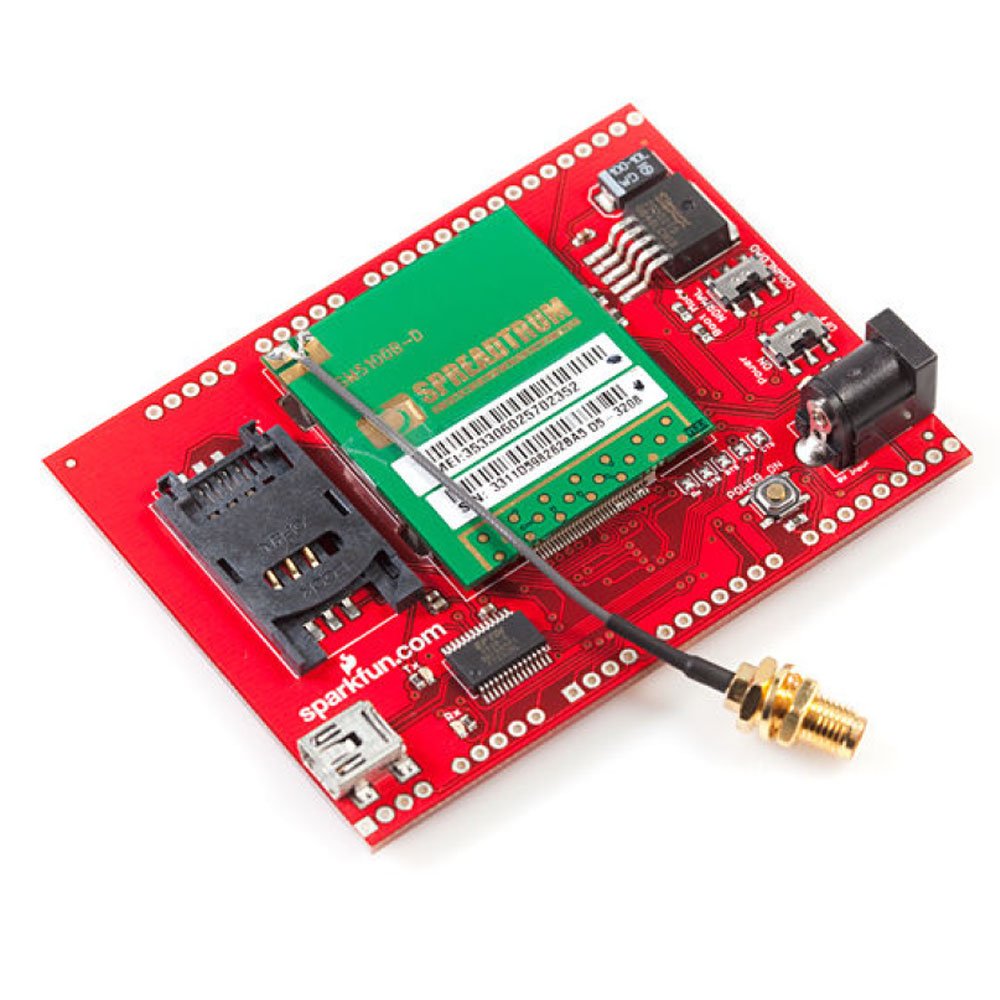

NERMS-V1 GSM Module Specifications-

  • Communication with Lantern via SMS
  • 4-Band GSM communication module with integrated antenna for worldwide usage
  • Easy method to send and receive monitoring messages
  • Communication pattern such as one to one and one too many can be done for monitoring
  • Remote Programming feature via GSM
  • Independent form flasher of light
  • Automated Alarm message for various operation

NERMS-V1 GPS Module Specifications-

  • Microprocessor based design
  • GPS module with 12 channels reception module with integrated antenna
  • Position coordinate via GPS Satellite at time of installation
  • Time and date according to GPS Satellite
  • Geo- fencing including maximum swinging radius
  • Synchronization capabilities
  • Remote Programming via GSM/Web portal
