TECHNICAL SPECIFICATIONS (Make-NavAid Energy)

  • Solar Panel

    200Wp x4Nos Solar Modules Mono/Poly Type, as per BIS/IEC61215 & IEC61730-1 approved (Make- EXEGI/Ankur/Kaumo Solar, Made in India)

  • Lithium Ferro Phosphate Battery

    50Ah 12.8V LiFePO4 x 4Nos (Lithium Ferro Phosphate) BIS Approved with Metallic box as per IP65 standard (Make-Exegi/Sunrover, Made in India)

  • Solar LED Light with MPPT Controller and RMS

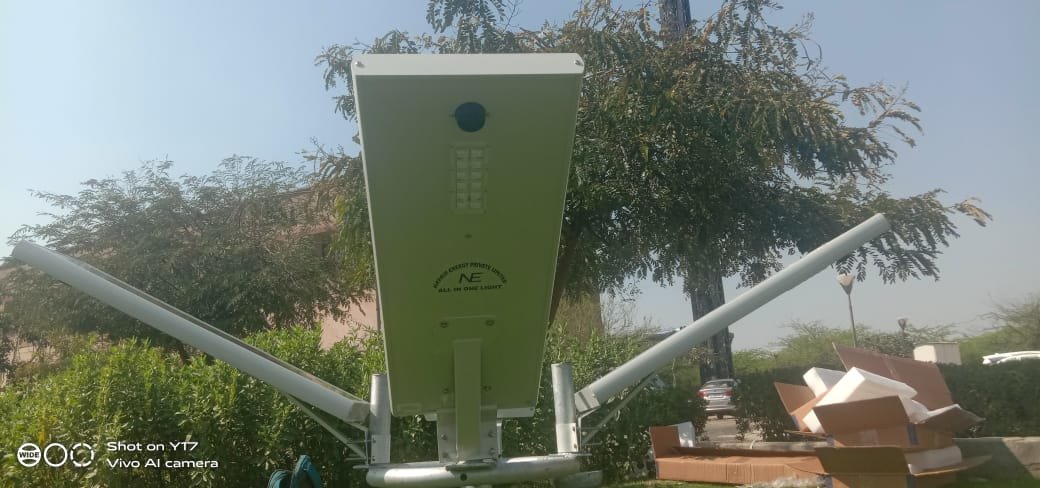

    30Watt Solar LED Heritage Light X4Nos with inbuilt MPPT Controller, Lumens >3750lm, Dusk to Dawn, Aluminum Housing Completely, Mounting Arm IEC60529:2001/IS 10322-1/ IES LM79-08/60598-2-3 (Make- NavAid Energy, Made in India)

  • Optional - Remote Monitoring System

    2G Based GSM RMS facility with online dashboard provided. Battery, Solar, and Light parameters can be checked online

  • High Mast Pole

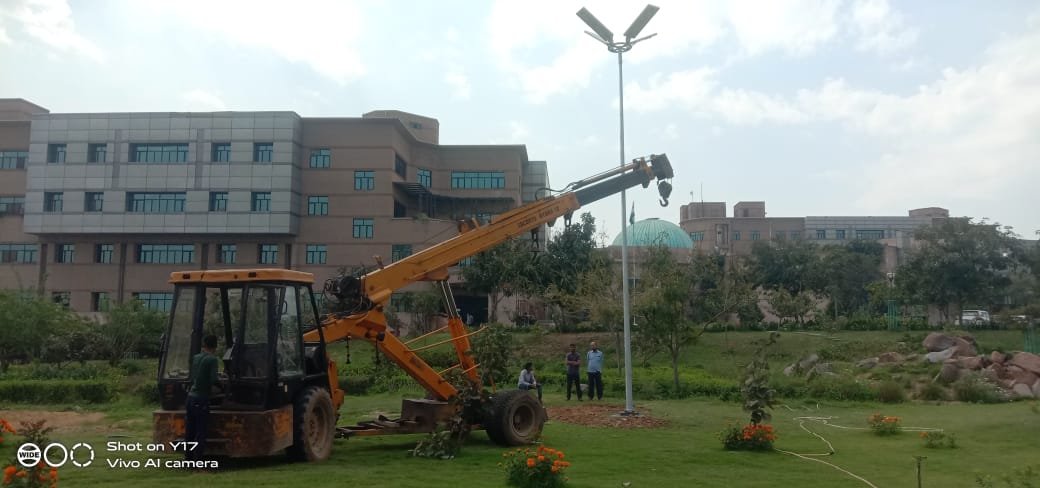

    9Mtr Heritage Pole Top OD-90mm & Bottom OD-230mm Thickness-10.0mm, With base plate 300x300x20mm, Foundation Bolts M25x 1200x 4Nos, Solar Module Frame and Light ring Mast with all accessories with Manual Winch System (Make- NavAid Energy/Sunrover, Made in India)

  • System Warranty / Guarantee

    Five years after delivery

  • Optional

    Remote Monitoring System 2G Based GSM RMS facility with online dashboard provided. Battery, Solar, and Light parameters can be checked online
