TECHNICAL SPECIFICATIONS (Make-NavAid Energy)

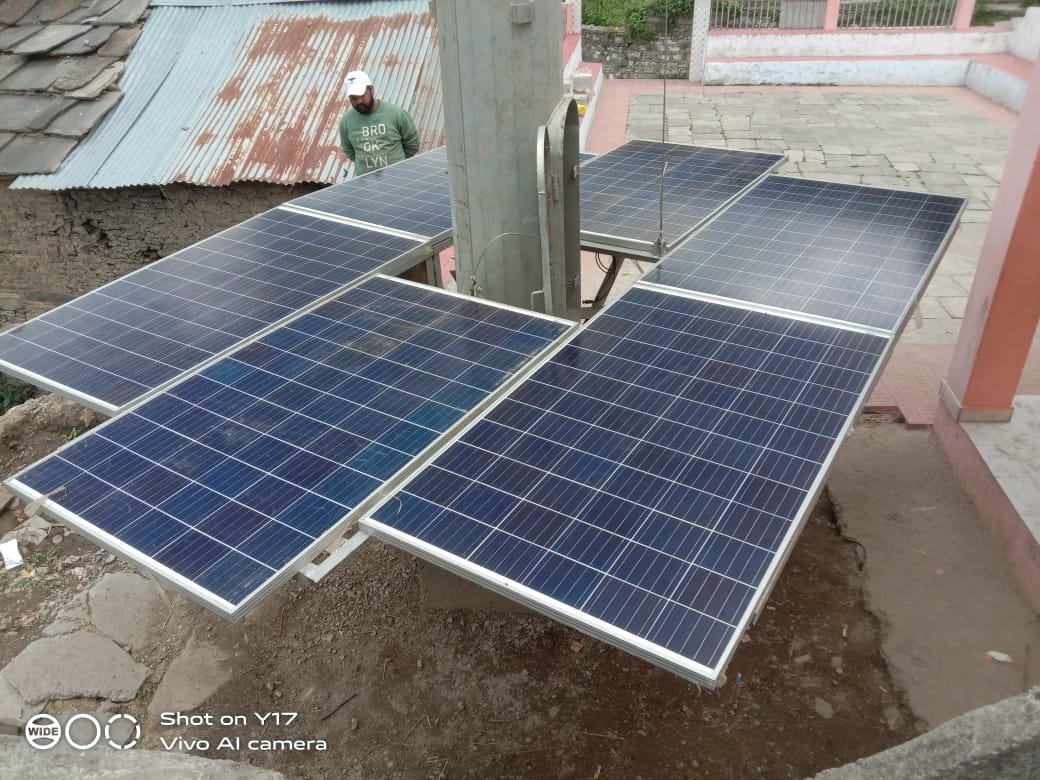

• Solar Panel

  160Wp x6Nos, as per IEC61215 & IEC61730-1 (Make- Kaumo Solar, Made in India)

• Lithium Ferro Phosphate Battery

  80Ah 12.8V LiFePO4 x 6Nos (Lithium Ferro Phosphate) BIS Approved with Metalic box as per IP65 standard (Make-Exegi, Made in India)

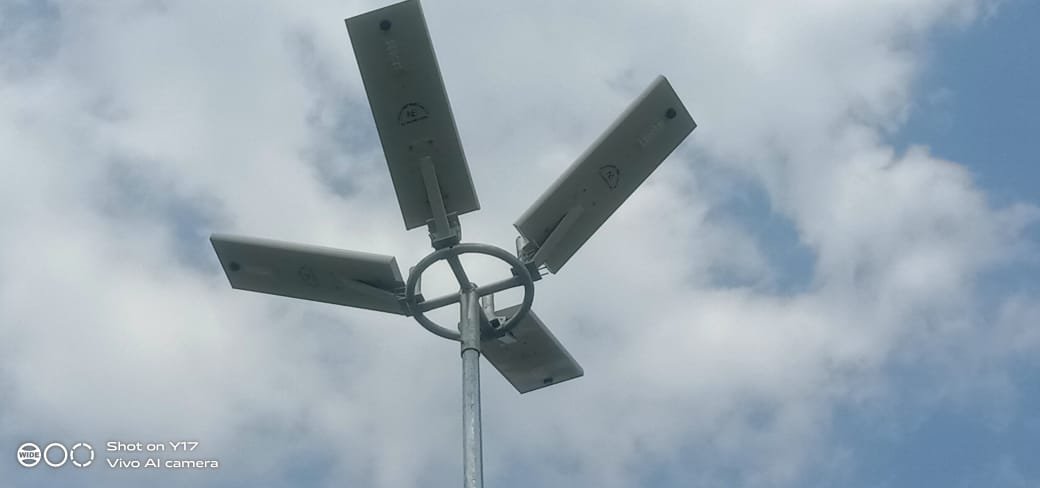

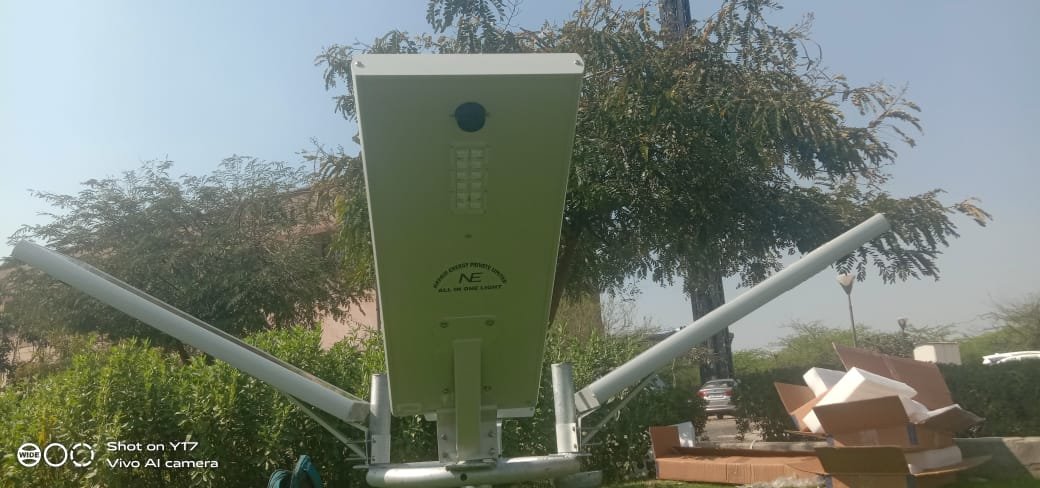

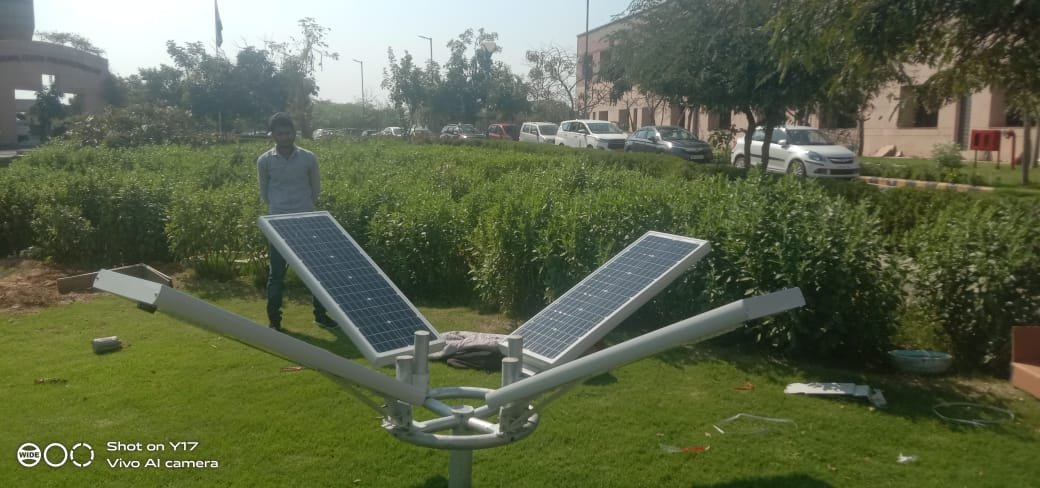

• Solar LED Light with MPPT Controller and RMS

  30Watt Solar LED Flood X6Nos with inbuilt MPPT Controller, Lumens>3500lm, Dusk to Dawn, Aluminum Housing Completely, Mounting Arm IEC60529:2001/IS 10322-1/ IES LM79-08/60598-2-3 (Make- NavAid Energy, Made in India)

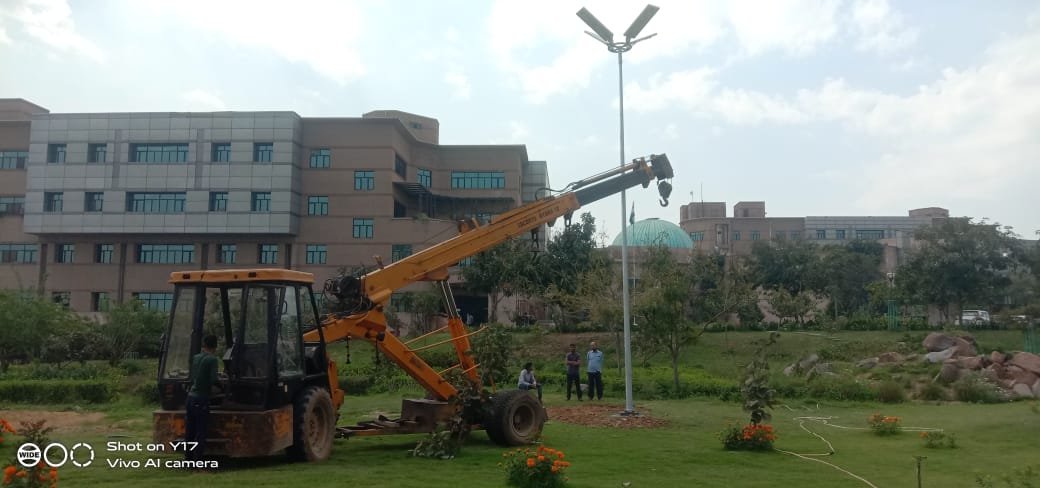

• High Mast Pole

  9Mtr High Mast Polygonal Pole 2sections Top OD-150mm & Bottom OD-410mm Thickness-4.0mm, With base plate 550Dia x20mm, Foundation Bolts M24x 1200x 6Nos, Solar Module Frame and Light ring Mast with all accessories with Manual Winch System (Make- NavAid Energy, Made in India)

• System Warranty / Guarantee

  Three years after delivery

• Optional

  Remote Monitoring System 2G Based GSM RMS facility with online dashboard provided. Battery, Solar, and Light parameters can be checked online
