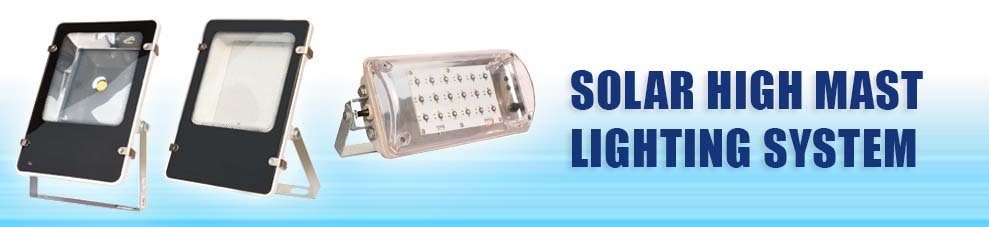

SOLAR LED HIGH MAST LIGHTING SYSTEM
LED LUMINAIRE/LED LIGHTS

  • Highly Efficient Solar LED Flood Lights -4Nos mounted on top of Pole
  • Comes with Highest Lumens producing LED with Optics and without optics option for better uniformity
  • Proper heat sink based luminary design for thermal management and higher LED life
  • LED Used of higher lumens efficacy to achieve highest lumens output per watt
  • LED USED- SAMSUNG/OSRAM/CREE
  • Comes with IP65/66 Standard of protection


SOLAR MODULE

Poly-crystalline or mono-crystalline MNRE Approved Solar Modules

SOLAR BATTERIES

Solar Tubular/ SMF Batteries of Exide and Amaron is used

POLE

GI Tubular and Octagonal Pole with all accessories is provided

POPULAR USES

For small streets, parking lots, arenas, public spaces, yards, open areas, rural lighting projects, hill Side lighting, hotel lawns etc





Technical Specification


MODEL

NE-SHML-20W

NE-SHML-30W

PV Module

75W12V x 4Nos

125W x 4Nos

LED Wattage

20W x 4Nos

30W x 4Nos

LED Chip

OSRAM/CREE/SAMSUNG

OSRAM/CREE/SEOUL

View Angle

120 degree

120 degree

Dimming

PWM Time Enabled

PWM Time Enabled

Color Temperature

5000~6500K (Cool White) / 2700~3500K (Warm White)

5000~6500K (Cool White) / 2700~3500K (Warm White)

Color Rendering Index

> 70

> 70

Life Time

>5Years

>5Years

Battery Capacity

75AH x 4Nos

100AH x 4Nos

Battery Life Time/Warranty

4-6years / 2years

4-6years/ 2years

Charge Controller & LED Driver

MPPT/PWM Driver with auto dimming to enhance working time

MPPT/PWM Driver with auto dimming to enhance working time

System Warranty

2years

2years

Circuit Protection

Overcharge, discharge, short circuit, open load, lightning protection

Overcharge, discharge, short circuit, open load, lightning protection

Autonomy

28Hours

28Hours

Working

Dusk to Dawn operation

Dusk to Dawn Operation

GI POLE (Tubular/Octagonal)

7Mtr with base plate

9Mtr with Base plate
