Integrated Solar LED Street Lights
The Integrated Solar LED Street Light is researched and developed by the NavAid Energy Pvt Ltd. Itís wireless and easy to be installed, with the free maintenance and long working life comes with all in one solution for Solar Street light having inbuilt Lithium ion battery bank, LED lamp and Solar module and PIR Motion Sensor Enabled which ensure more working time and detect human movement to magnify or dim the light output and eventually saving battery life.

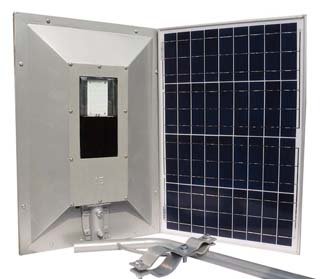

The Solar module Controller LED lamp and Lithium ion battery ALL in one, Integration Design

Product Feature

Integrated design, beautiful, simple and convenient
Solar power supply, green environmental protection, zero emissions
Using new long-life battery, lithium ion the free maintenance for 4-6 years
The multifunction controller, more energy saving and lighting for longer
Professional street light secondary light distribution more uniform, No glare OSRAM LED
Surface anti-corrosion treatment and IP65


Popular Use

For small streets, parking lots, arenas, public spaces, yards, open areas, rural lighting projects, hill Side lighting, hotel lawns etc

Technical Specification


MODEL

NE-ISSL-12W

NE-ISSL-15W

PV Module

40W12V Polycrystalline Inbuilt PV

40W12V Polycrystalline Inbuilt PV

LED Wattage

12W

15W

LED Chip

OSRAM/CREE/SEOUL

OSRAM/CREE/SEOUL

View Angle

120 degree

120 degree

PIR Motion Sensor

Inbuilt for dimming

Color Temperature

5000~6500K (Cool White) / 2700~3500K (Warm White)

Color Rendering Index

> 70

Life Time

>5Years

Battery Type/ Capacity

Lithium Ion battery / 11.1V/11000mAH

Battery Life Time/Warranty

3-4years / 1year

Charge Controller & LED Driver

MPPT type /PWM Driver with auto dimming to enhance working time

Electronics Warranty

2years

Circuit Protection

Overcharge, discharge, short circuit, open load, lightning protection

Autonomy

15Hours

Dimension/ Weight

670x450x105mm / 9Kg approx

Working

Dusk to Dawn operation

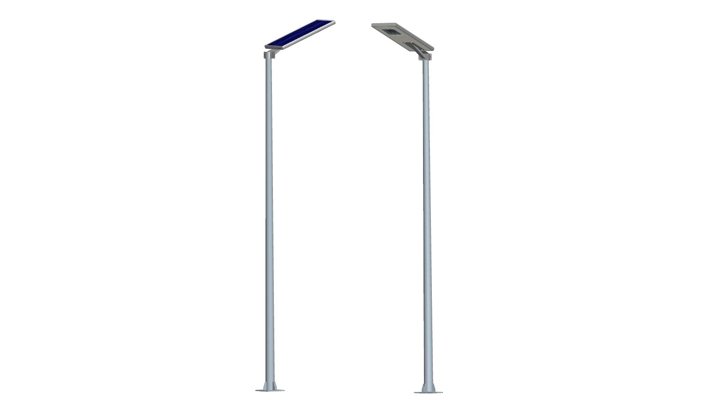

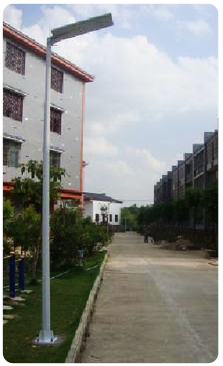

Installation Rendering (Example)
